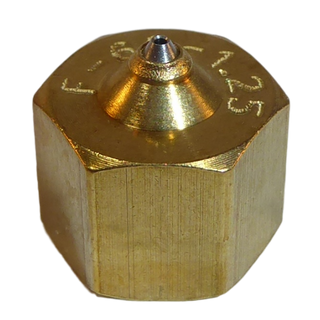

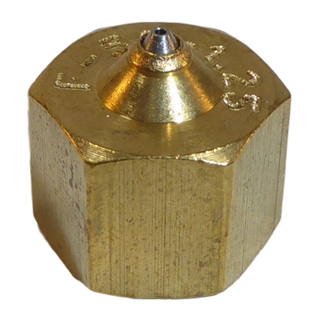

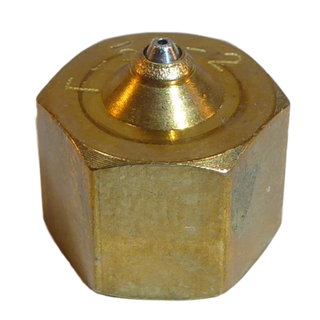

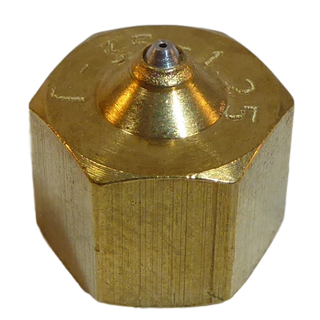

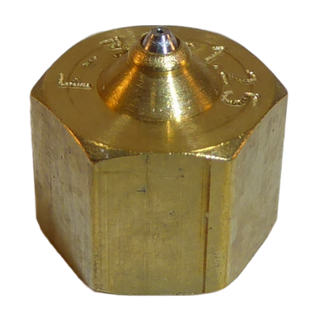

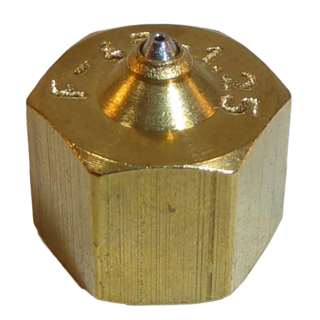

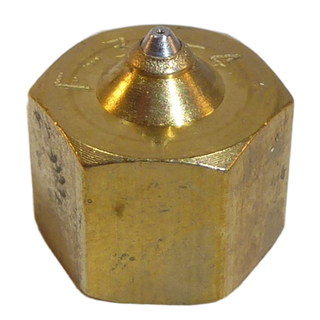

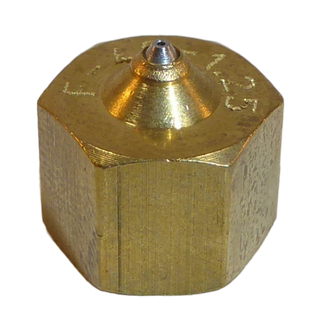

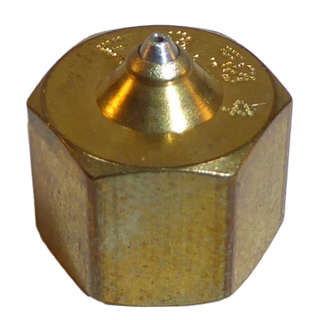

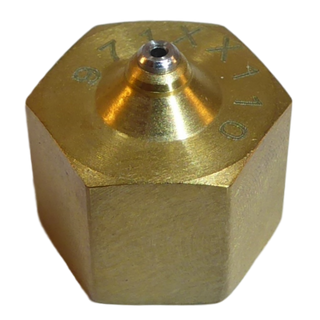

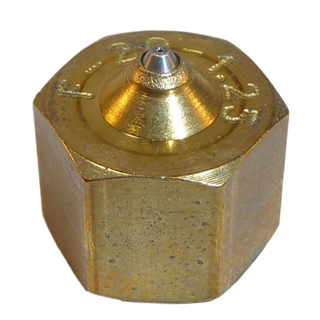

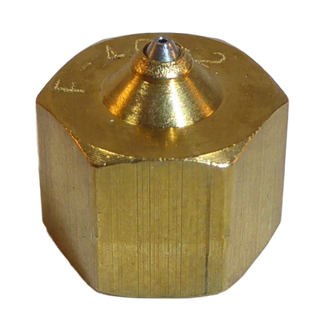

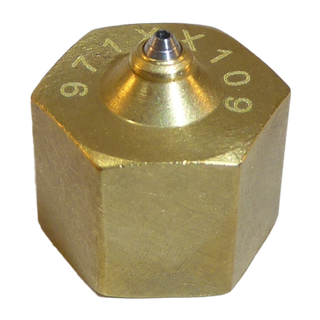

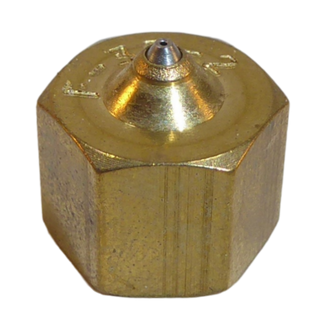

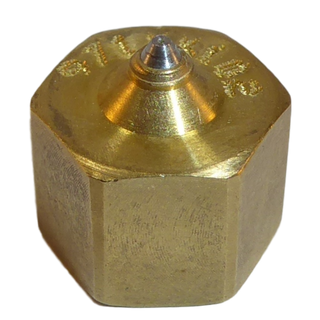

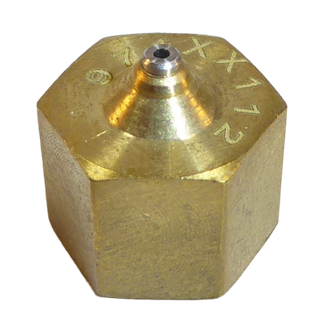

H200, single orifice
The H200, single orifice nozzles are standard nozzles used on all MS, ME & LP style guns. They are also fit for Nordson Classic Blue, H-200, Solid Blue and ME modules.
The Valco Melton nozzles are machined from a brass body and have stainless steel insert. The inserts are formed from medical grade polished capillary tube with provides the highest quality channel from which the adhesive can be extruded. These nozzles will provide a straight, consistent and accurate adhesive bead.
Available sizes
|
Orifice Size mm (in) |
Engagement Length 1.25mm (0.05) |
Engagement Length 1.90mm (0.06) |
Engagement Length 2.50mm (0.10) |
Engagement Length 4.00mm (0.16) |
Engagement Length 7.00mm (0.28) |
|
Ø 0.20mm (0.008) |
971xx101 |
971xx201 |
971xx301 |
971xx401 |
|
|
Ø 0.25mm (0.010) |
971xx102 |
971xx202 |
971xx302 |
971xx402 |
971xx510 |
|
Ø 0.30mm (0.012) |
971xx103 |
971xx203 |
971xx303 |
971xx403 |
971xx501 |
|
Ø 0.35mm (0.014) |
971xx104 |
971xx204 |
971xx304 |
971xx404 |
971xx502 |
|
Ø 0.40mm (0.016) |
971xx105 |
971xx205 |
971xx305 |
971xx405 |
971xx503 |
|
Ø 0.45mm (0.018) |
971xx106 |
971xx206 |
971xx306 |
971xx406 |
971xx504 |
|
Ø 0.50mm (0.020) |
971xx107 |
971xx207 |
971xx307 |
971xx407 |
971xx505 |
|
Ø 0.60mm (0.024) |
971xx108 |
971xx208 |
971xx308 |
971xx408 |
971xx506 |
|
Ø 0.70mm (0.028) |
971xx109 |
971xx209 |
971xx310 |
971xx409 |
971xx507 |
|
Ø 0.75mm (0.030) |
971xx110 |
971xx212 |
|
971xx410 |
971xx508 |
|
Ø 0.80mm (0.032) |
971xx112 |
971xx210& |
|
971xx412 |
|
|
Ø 1.00mm (0.040) |
|
|
|
971xx411 |
971xx509 |
|
Ø 1.20mm (0.045) |
|
|
|
971xx413 |
|
|
Ø 1.25mm (0.050) |
|
|
|
971xx414 |
|
