H200, 90°
90° H200 nozzles for use on all MS, ME, LP, MX guns
These nozzles will fit into any H-200 style adhesive module. All MS, ME and LP guns can use these nozzles as well as the Nordson H200, Classic Blue, Solid Blue and H440 modules.
Valco Melton nozzles have a 3/8-24 female thread.
The 90-degree nozzles are constructed of a brass nozzle housing, steel retaining nut and stainless steel nozzle insert. The stainless steel inserts are formed from medical grade polished capillary tube which provides the highest quality channel from which the adhesive can be extruded. These nozzles will provide a straight, consistent and accurate adhesive bead.

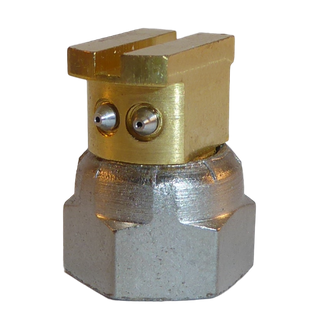

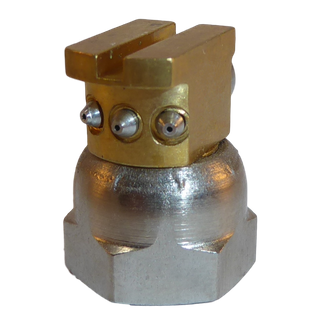

These nozzles are available in single, dual and triple orifice.
Available sizes
|
Orifice size mm (in) |
1 exit | 2 exit; 10° | 2 exit; 15° | 2 exit; 22° | 2exit; 30° | 2 exit; 45° | 3 exit; 15° | 3 exit; 19° | 3 exit; 22.5° |
|
Ø 0.20mm (0.008) |
974xx001 |
974xx101 |
974xx201 |
974xx301 |
974xx401 |
|
|
|
|
|
Ø 0.25mm (0.010) |
974xx002 |
974xx102 |
974xx202 |
974xx302 |
974xx402 |
|
|
|
|
|
Ø 0.30mm (0.012) |
974xx003 |
974xx103 |
974xx203 |
974xx303 |
974xx403 |
|
|
974xx503 |
974xx603 |
|
Ø 0.35mm (0.014) |
974xx004 |
974xx104 |
974xx204 |
974xx304 |
974xx404 |
|
974xx611 |
974xx504 |
974xx604 |
|
Ø 0.40mm (0.016) |
974xx005 |
974xx105 |
974xx205 |
974xx305 |
974xx405 |
974xx414 |
|
974xx505 |
974xx605 |
|
Ø 0.45mm (0.018) |
974xx006 |
974xx106 |
974xx206 |
974xx306 |
974xx406 |
|
|
|
974xx606 |
|
Ø 0.50mm (0.020) |
974xx007 |
974xx107 |
974xx207 |
974xx307 |
974xx407 |
974xx412 |
974xx510 |
974xx507 |
974xx607 |
|
Ø 0.60mm (0.024) |
974xx008 |
974xx108 |
974xx208 |
974xx308 |
974xx408 |
|
974xx612 |
974xx508 |
974xx608 |
|
Ø 0.70mm (0.028) |
974xx009 |
974xx109 |
974xx209 |
974xx309 |
974xx409 |
|
974xx614 |
974xx509 |
974xx609 |
|
Ø 0.75mm (0.030) |
974xx010 |
974xx110 |
974xx210 |
974xx310 |
974xx410 |
|
|
|
974xx610 |
|
Ø 0.80mm (0.032) |
974xx011 |
|
|
|
974xx413 |
|
|
|
|
|
Ø 1.00mm (0.040) |
974xx012 |
974xx111 |
974xx211 |
974xx311 |
974xx411 |
|
|
|
|
|
Ø 1.20mm (0.049) |
974xx615 |
|
|
|
|
|
|
|
|
|
Ø 1.50mm (0.059) |
974xx040 |
|
|
|
|
|
|
|
|
