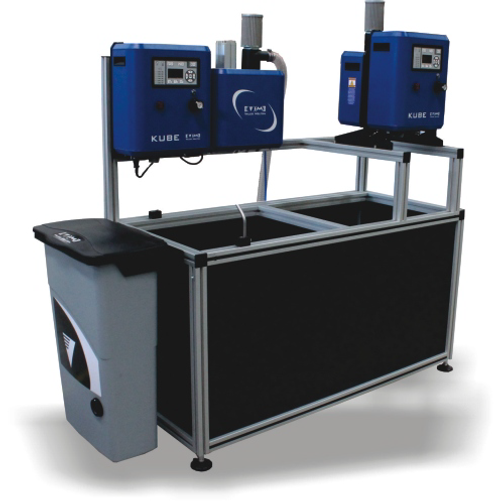

KUBE Melton-On-Demand Hot Melt Unit

The KUBE is a compact, melt-on-demand hot melt unit. Featuring an integrated auto-feed supply system, the KUBE
offers hands-free system operation for nearly any low to medium volume requirement. Suited for most common
packaging applications the KUBE is a modular design that allows it to be configured to any specific install need.

Energy efficient - melt only as needed
Clean - reduced adhesive char
Industry standard compatible
Up to 6 hoses/guns
User-friendly... easily connects to existing PLC or optional integrated control system

KUBE System Specifications

Melting Capacity:	8 - 12kg/hr (17.6-26.4 lbs/hr)
Max. Hydraulic Pressure:	1100Psi (80 Bar)
Pumping Capacity:	35kg/hr (77lbs/hr)
Max. Viscosity:	30.000 cps
Electrial Power:	2000W
Max. Temperature:	204°C (425°F)
Max. Rate:	275kg/hr (600lbs/hr)
Estimated Air Consumption:	120L/min

KUBE System Dimensions
	Panel Style	Compact Style	Split Style

Height	450mm (17.7in)	580mm (22.9in)	450mm (17.7in)
Length	770mm (30.3in)	280mm (11in)	380+480mm (15+18.9in)
Depth	250mm (9.9in)	550mm (21.7in)	250mm (9.9in)
