C Series Hot Melt Units

*The C series is now obsolete and is replaced by the NC or EC series

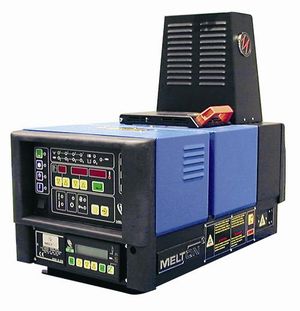

Valco Melton's C Series hot melt unit offers industry standard compatibility; micro-processor controls with a wide array of features; and a PID control system for accurate and controlled temperatures.

The C series hot melt unit is available in 4, 8, 16, 30, and 50 litre variations.

Unit C 4 C 8 C 16
Tank Capacity 4L 8L 16L
Melting Capacity (kg/h) 4,2 7,9 13,5
Pump Compression Ratio 1:14 1:14 - 1:13 1:13
Max Pump Capacity (kg/h) 35kg (77.2lb) 35-100kg (77.2-220.5lb) 100kg (220.5lb)
Working temperature range 30 - 240°C (86 - 464°F)
Electrical connection 220 I + T, 220III + T, 380III + N + T
Working viscosity 50,000cps
Air pressure 0, 2 - 6bar (29 - 87psi)
Electrical consumption 1800w 2800w 4800w
  Max channel power (W) 2 exits 4 exits  6 exits
  Total channel (hose + gun) 3500W 3500W  4400W
  Per exit (hose and gun) 2200W 2200W 2200W
  Per channel (hose or gun) 1600W 1600W 1600W

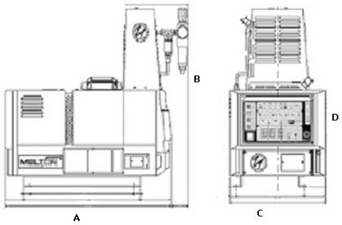

  Dimensions C 4  C 8  C 16
dimensions 3.png A 700mm (27.5") 745mm (29.3") 845mm (33.3")
B 565mm (22.2") 565mm (22.2") 605mm (23.8")
C 307mm (12.1") 307mm (12.1") 307mm (12.1")
D 345mm (13.6") 345mm (13.6") 345mm (13.6")



PDF.png C Series Hot Melt Unit Brochure
