Flexmelt Hot Melt Units

Adhesive Melters: 4, 8, 14, 30, 50 and 100 liters

Valco Melton’s FlexMelt™ Series includes a complete range of hot melt tanks designed for the most demanding applications. All FlexMelt Series Units feature an intuitive MFC (Multi-Function Controller) for fast and easy configuration changes. This totally integrated control provides 'key-to-line' capabilities from one single, user-friendly screen.

  • Utilize up to 2 gear pumps dual or single stream for 8, 14 and 100 liter units
  • Manage up to 4 gear pumps dual or single stream with 30 and 50 liter units
  • Support any pump combination
  • Simplify programming tasks with an easy-to-use, but sophisticated Multi-Function Control with integrated variable speed pump control and intuitive, language-free interface based icons

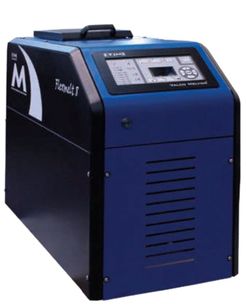

flexmelt.JPG  Flexmelt units are also available in 30, 50, and 100 litres.
  FM4 FM8 FM14
Tank Capacity 4L 8L 14L
Melting Capacity 4.9kg (lbs) 6.5kg (lbs) 12kg (lbs)
Max. Pumping Capacity per Pump Single stream: 0.45 - 8 cc Single stream: 0.45 - 8 cc/Dual stream: 2x0.2 - 4.8 cc
Max. Number of Pumps Up to 1 Up to 2
Electrical Connection 230 Δ + PE or 400 Y + PE
Max. Working Viscosity 50000 cps
Max. Working Hydraulic Pressure 80 bar
Electrical Consumption (unit) 2000W 2900W 4100W
  Electrical Consumption (pump & manifold) 1280W 1280W 1280W





PDF.png Flexmelt Hot Melt Unit Brochure
