Drum Unloader Hot Melt Units

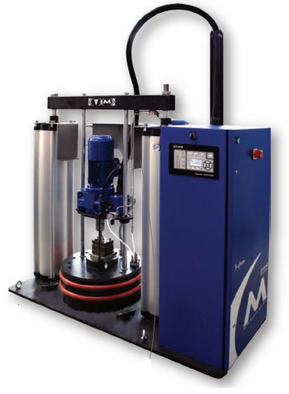

EDrum Series
200L Drum Unloaders
Designed for the application of any type of adhesive delivered in 200-liter drums, the EDrum Series Unloaders are extremely
versatile and include several, customizable options that adapt to each user's specific requirements.
System Features
- Safer working environment with optional platen protection system and vent hood
- Reduced downtime related to drum changes with new drum fastening system
- Customizable to specific user needs
- Integrated grammage control
- Teflon® encapsulated seals
 |
|||
| System | 200L flat platen | 200L finned platen | |
| Drum Capacity | 200L | 200L | |
| Max. Melting Capacity | 60kg/hr (132lbs/hr) | 130kg/hr (286lbs/hr) | |
| Max. Pumping rate | 180kg/hr (397lbs/hr) | 180kg/hr (397lb/hr) | |
| Max. Number of Pumps | 2 | 2 | |
| Working Temperature | 30 - 240°C (86 - 464°F) | ||
| Max. Working Viscosity | 100 000 cps | ||
| Max. Working Pressure | 100 bar | ||
| Electrical Consumption | 18,5 Kw | ||
| 6 Output Electronic Board | 8 Output Electronic Board | ||||||
| Max. Channel Power | Channel 1 / Channel 2 | Channel 3 / Channel 4 | Channel 5 / Channel 6 | Channel 1 / Channel 2 | Channel 3 / Channel 4 | Channel 5 / Channel 6 | Channel 7 / Channel 8 |
| Per channel (hose and gun) | 1800W | 1450W | 1450W | 1800W | 1450W | 4600W | 4600W |

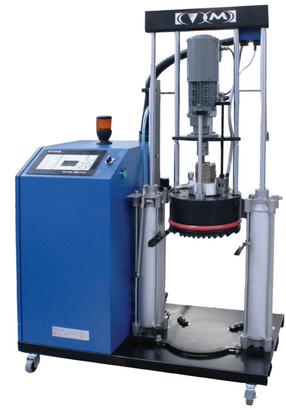

BPail Series
20L Pail Unloaders
Valco Melton's BPail Series Melters are specially designed for the application of PUR adhesive delivered in 20 Liter pails. Each BPail Unit includes a flat or finned platen to achieve different melt rates and optional add-on safety features.
- Safer working environment with new platen protection system and
fume exhaust hood in option - Reduced downtime related with drum changes
- A wide range of options permit customization to specific user needs
 |
|||
| System | 20L flat platen | 20L finned platen | |
| Drum Capacity | 20L | 20L | |
| Max. Melting Capacity | 8kg/hr (18lbs/hr) | 25kg/hr (55lbs/hr) | |
| Max. Pumping rate | 48kg/hr (106lbs/hr) | 48kg/hr (106lb/hr) | |
| Max. Number of Pumps | 1 | 1 | |
| Working Temperature | 30 - 240°C (86 - 464°F) | ||
| Max. Working Viscosity | 100 000 cps | ||
| Max. Working Pressure | 100 bar | ||
| Electrical Consumption | 8 Kw | ||
| 4 Output Electronic Board | ||
| Max. Channel Power | Channel 1 / Channel 2 | Channel 3 / Channel 4 |
| Per channel (hose and gun) | 2000W | 1400W |

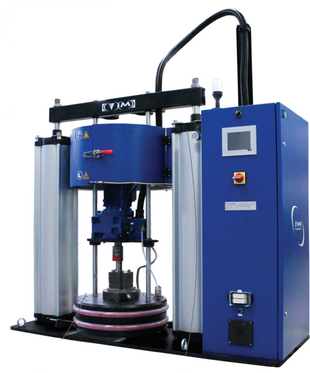

SmartDrum Series
200L Drum Unloaders
Designed for the application of any type of adhesive delivered in 200-liter drums, the SmartDrum Series Unloaders are extremely versatile and include several, customizable options that adapt to each user's specific requirements.
System Features
- Connect anywhere with optional wifi remote connectivity and online technical assistance
- Main machine network communication protocols (Profinet and Ethernet) are 100% compatible
- All electronics are "off-the-shelve" commercially available components. No proprietary electronics
- Safer working environment with optional platen protection system and vent hood
- Reduced downtime related to drum changes with new drum fastening system
- Integrated grammage control
- Teflon® encapsulated seals
 |
|||
| System | 200L flat platen | 200L finned platen | |
| Drum Capacity | 200L | 200L | |
| Max. Melting Capacity | 60kg/hr (132lbs/hr) | 130kg/hr (286lbs/hr) | |
| Max. Pumping rate | 180kg/hr (397lbs/hr) | 180kg/hr (397lb/hr) | |
| Max. Number of Pumps | 2 | 2 | |
| Working Temperature | 30 - 240°C (86 - 464°F) | ||
| Max. Working Viscosity | 100 000 cps | ||
| Max. Working Pressure | 100 bar | ||
| Electrical Consumption | 18,5 Kw | ||
| 6 Output Electronic Board | 8 Output Electronic Board | ||||||
| Max. Channel Power | Channel 1 / Channel 2 | Channel 3 / Channel 4 | Channel 5 / Channel 6 | Channel 1 / Channel 2 | Channel 3 / Channel 4 | Channel 5 / Channel 6 | Channel 7 / Channel 8 |
| Per channel (hose and gun) | 1800W | 1450W | 1450W | 1800W | 1450W | 4600W | 4600W |
 |
